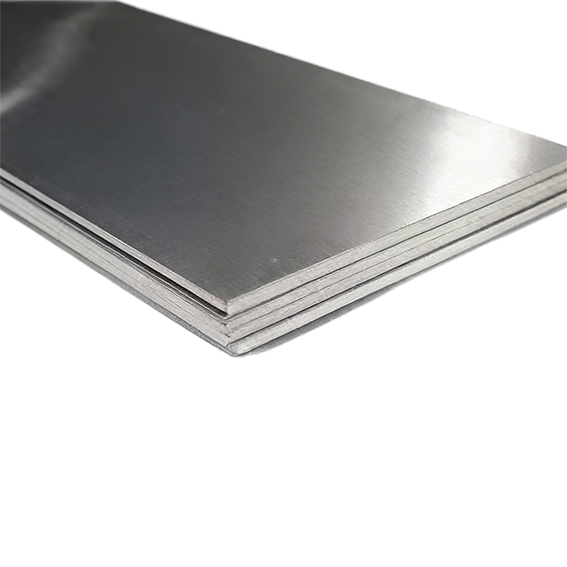

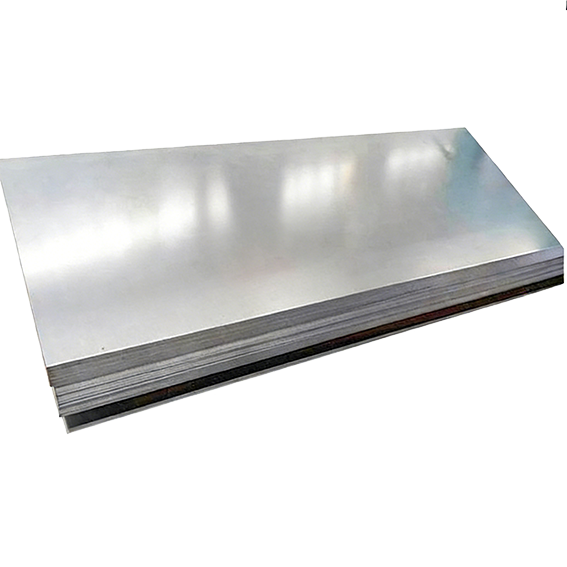

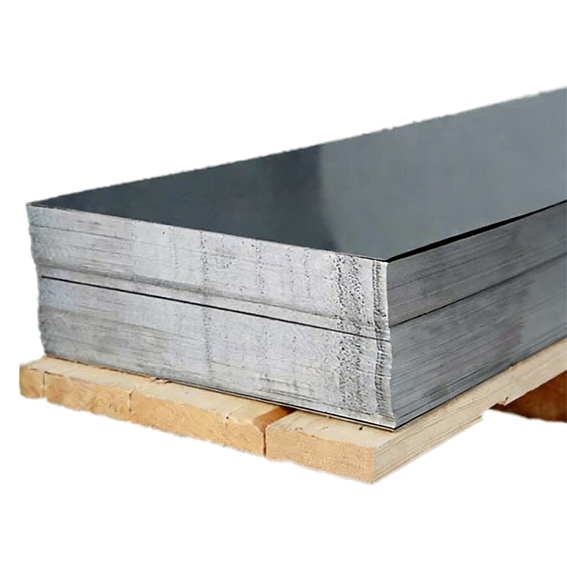

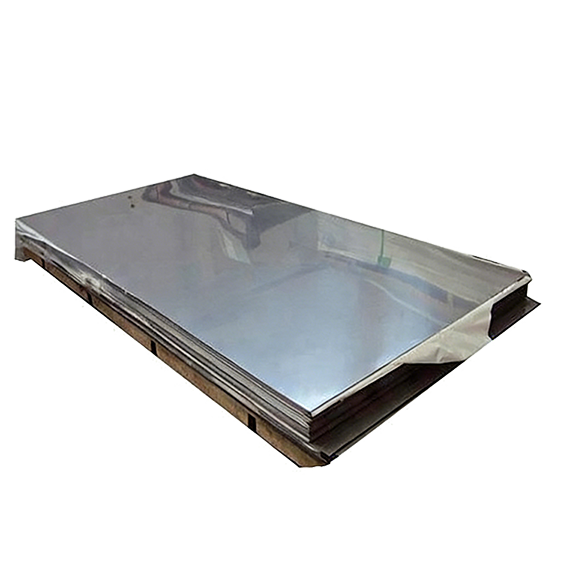

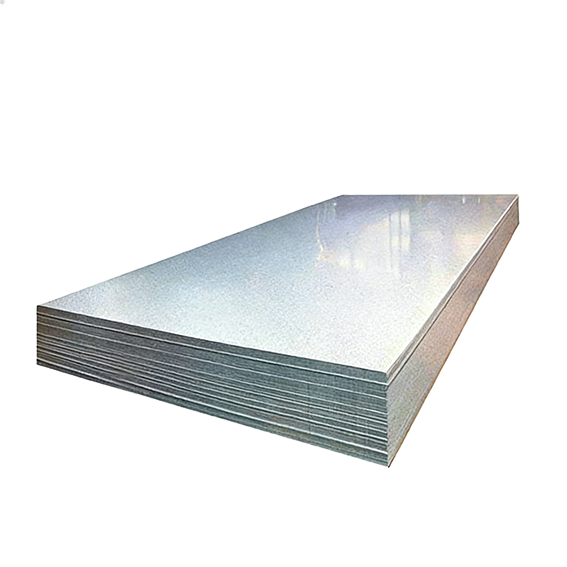

Material: 201 / 304 / 316L / 430
Thickness: 0.30-3.00mm
Size: 1000*2000mm, 1219*2438mm, 1219*3048mm, 1500*3000mm
Surface: 2B
Product Description
Stainless steels are primarily used when corrosion or oxidation is a problem. The function that they perform cannot be duplicated by other materials for their cost. Over 50 years ago, it was discovered that a minimum of 12% chromium would impart corrosion and oxidation resistance to steel. Hence the definition “Stainless Steels”, are those ferrous alloys that contain a minimum of 12% chromium for corrosion resistance. This development was the start of a family of alloys which has enabled the advancement and growth of chemical processing and power generating systems upon which our technological society is based.
| Product type | Cold Rolled Stainless Steel Sheet/Plate/Coil |
| Grade | 200/300/400Series–SS201,304,316,430 |
| Standard | JIS, AISI, ASTM, DIN, TUV, BV, SUS, etc. |
| Thickness | 0.25-3.0mm |
| Width range | 600mm – 1500mm |
| Length | 2000/2438/3048mm customization |
| Regular size | 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, or customization |
| Surface finish | NO.2B, BA, No.4, 4K,6K, 8K, Hairline etc. |
| Origin | POSCO,JISCO,TISCO,LISCO,BAO STEEL etc. |
| Payment terms | 30%TT for deposit, 70% balance before shipment or LC at sight |
| Lead time | 7 to 25 working days after the receipt of 30% deposit |
Chemical Composition and Mechanical Properties of Stainless Steel Coils
| Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | – | HB≤241,HRB≤100, HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | – | HB≤187,HRB≤90,HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | – | HB≤183, HRB≤88 HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | – | 16.00/18.00 | – | HB≤183, HRB≤88 HV≤200 |
Stainless steel sheet is also known as stainless steel plate, characterized by complete specifications, diverse materials; High dimensional accuracy, up to ± 0.1mm;Excellent surface quality, good brightness; Strong corrosion resistance, high tensile strength and fatigue strength; Stable chemical composition, pure steel, low inclusion content, widely used in construction decoration, shipbuilding, vehicle manufacturing, machinery manufacturing, furniture and household appliances industry, electrical and automation industry.
